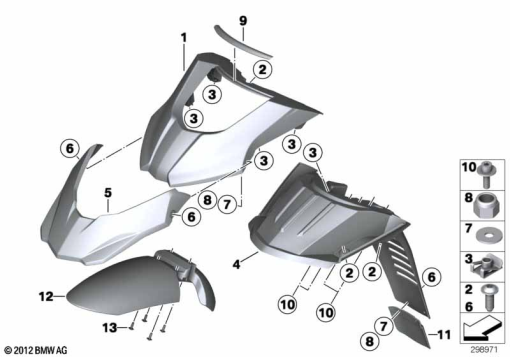

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 61 8 522 539 | FRONT WHEEL FENDER - RED-ORANGE | - | |
46 61 7 727 170 | FRONT WHEEL FENDER - AURA-WHITEAlternative for position 1 | - | ||
| 2 | 06 32 7 651 212 | BINDING HEAD SCREW - M5X16-A2-80 | - | |
| 3 | 46 63 7 694 548 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
| 4 | 46 61 8 543 041 | FRONT WHEEL COVER, LOWER | - | |
| 5 | 46 61 8 530 110 | FRONT WHEEL COVER EXTENSION | - | |
| 6 | 06 32 7 651 212 | BINDING HEAD SCREW - M5X16-A2-80 | - | |
| 7 | 07 11 9 904 446 | WASHER - 5-200 HV-ZNNIV | - | |
| 8 | 07 14 7 575 164 | SELF-LOCKING HEX NUT - M5 | - | |
| 9 | 46 61 7 727 130 | COVER FOR FRONT WHEEL COVER | - | |
| 10 | 07 12 9 906 459 | ISA SCREW WITH WASHER - M6X16 | - | |
| 11 | 46 61 7 655 718 | MUDGUARD EXTENSION REAR | - | |
| 12 | 46 61 7 664 871 | FRONT WHEEL MUDGUARD, LOWER PART - F650GS | - | |
| 13 | 46 61 7 713 314 | FILLISTER HEAD SCREW - M5X14-A2-80-MK | - |
