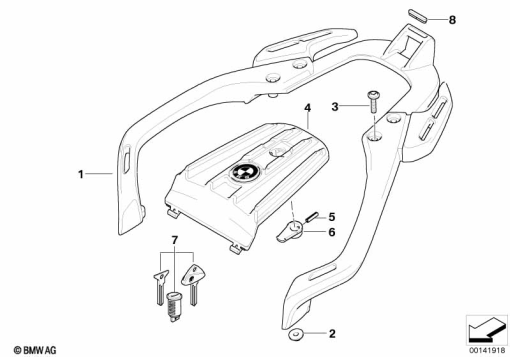

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 7 678 924 | HANDLE REAR - SILVER | - | |
46 54 8 527 521 | HANDLE REAR - BLACKAlternative for position 1 | - | ||
| 2 | 07 12 9 904 319 | HEX NUT - AM5-8-ZNNIV SI | - | |
| 3 | 46 54 7 684 770 | ISA SCREW - M6X35 | - | |
| 4 | 46 54 7 678 918 | COVER F LUGGAGE SUPPORT - SILVER | - | |
46 54 8 527 519 | LID FOR LUGGAGE COMPARTMENT - BLACKAlternative for position 4 | - | ||
| 5 | 07 11 9 941 417 | ROLL PIN - 2,5X18 | - | |
| 6 | 46 63 2 313 938 | CATCH | - | |
| 7 | 51 25 2 313 284 | LOCK CYLINDER WITH KEY | - | |
51 25 2 313 285 | LOCK (WITH KEY CODE)Alternative for position 7 | - | ||
| 8 | 46 54 7 678 929 | DISTANCE RUBBER | - |
