G650GS 10-15 (R131) | Frame, Fairing, Cases

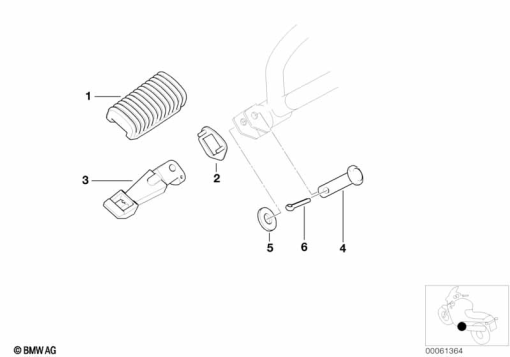

REAR FOOTRESTS
Diagram #46_0613 | 8 parts | 3 available in shop
100%
Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 2 310 401 | FOOTREST RUBBER | 1 | |
| 2 | 46 71 7 687 107 | THRUST WASHER, LEFT | 1 | |
| 2 | 46 71 7 687 108 | THRUST WASHER, RIGHT | 1 | |
| 3 | 46 71 2 310 403 | FOOTREST, REAR LEFT | 1 | |
| 3 | 46 71 2 310 404 | FOOTREST, REAR RIGHT | 1 | |
| 4 | 46 71 7 717 831 | PIN - D=8MM/L=36MM | 1 | |
| 5 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | 1 | |
| 6 | 07 11 9 905 230 | SPLIT PIN - 2X16 | 1 |
