G650GS 10-15 (R131) | Frame, Fairing, Cases
SIDE STAND

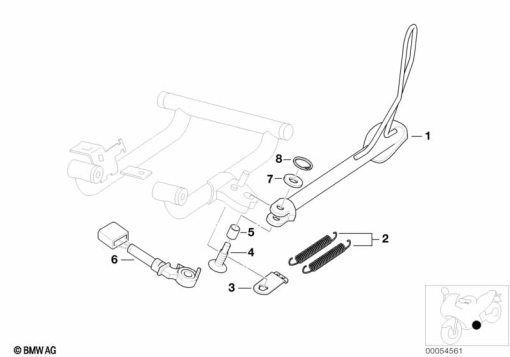

Diagram #46_0615 | 12 parts | 1 available in shop
100%
Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 53 7 669 901 | SIDE STAND | 1 | |
| 1 | 46 53 7 669 899 | SIDE STAND | 1 | |
| 2 | 46 53 2 345 275 | TENSION SPRING | 1 | |
| 3 | 46 53 2 335 449 | HOLDER | 1 | |
| 4 | 46 53 2 335 323 | COUNTERSUNK HEAD SCREW - M10 | 1 | |
| 5 | 46 53 7 663 055 | BUSHING | 1 | |
| 6 | 61 31 8 388 642 | SWITCH, KICKSTAND | 1 | |
| 1 | 61 12 8 523 365 | ADAPTER LEAD - L=530MM | 1 | |
| 1 | 07 11 9 903 479 | LOCK RING - 6X0,7 | 1 | |
| 1 | 07 11 9 904 427 | WASHER - 6-200 | 1 | |
| 7 | 07 11 9 904 427 | WASHER - 6-200 | 1 | |
| 8 | 07 11 9 903 479 | LOCK RING - 6X0,7 | 1 |
