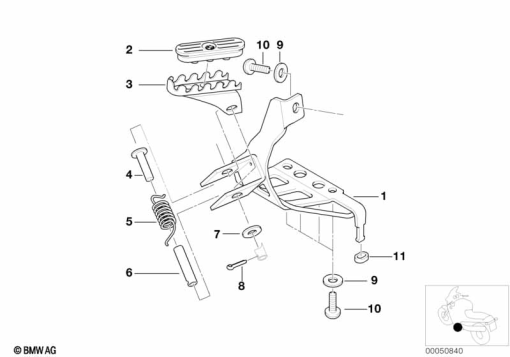

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 7 650 294 | FOOTPEG PLATE RIGHT - FRONT | - | |
46 71 7 668 619 | LEFT FOOTREST PLATE WITHOUT STOP - FRONTAlternative for position 1 | - | ||
| 2 | 46 71 1 242 109 | FOOTREST RUBBER | - | |
| 3 | 46 71 7 654 663 | FOOTREST, LEFT - L=105MM | - | |
46 71 7 654 664 | FOOTREST, RIGHT - L=105Alternative for position 3 | - | ||
| 4 | 07 11 9 902 186 | 0.04 | - | |
| 5 | 46 71 1 242 020 | SPRING | - | |
| 6 | 46 71 1 242 019 | SPACER TUBE | - | |
| 7 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | - | |
| 8 | 07 11 9 905 230 | SPLIT PIN - 2X16 | - | |
| 9 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | - | |
| 10 | 34 11 7 713 039 | OVAL HEAD SCREW - M8X20MK | - | |
| 11 | 46 53 7 650 674 | STOP BUFFER - LEFT | - |
