G650GS 10-15 (R131) | Engine

PISTON WITH RINGS AND WRISTPIN

Diagram #11_2940 | 3 parts

100%

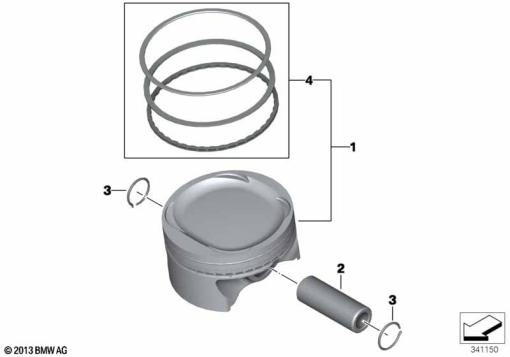

G650GS 10-15 (R131) PISTON WITH RINGS AND WRISTPIN exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
2
11 25 7 675 304
GUDGEON PIN - D22X18X68.71
3
11 25 7 652 916
LOCK RING - 22MM1
4
11 25 7 700 411
SET: REPAIR KIT PISTON1
