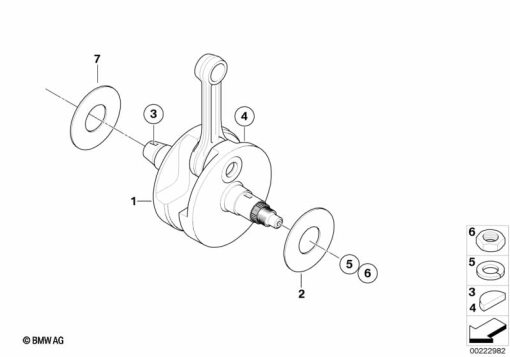

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 21 8 537 751 | CRANKSHAFT/CONNECTING ROD | - | |
| 2 | 11 21 7 700 235 | SHIM - 46X69X1 | - | |
11 21 7 700 324 | SHIM - 46X69X1,6Alternative for position 2 | - | ||
11 21 7 700 325 | SHIM - 46X69X1,4Alternative for position 2 | - | ||
11 21 7 700 326 | SHIM - 46X69X1,2Alternative for position 2 | - | ||
| 3 | 11 27 7 700 170 | WOODRUFF KEY - 4X5 | - | |
| 4 | 21 21 7 700 172 | WOODRUFF KEY - 6X9 | - | |
| 5 | 12 11 2 343 250 | LOCK RING - 22 | - | |
| 6 | 12 31 7 700 301 | HEX NUT - M22X1,5 | - | |
| 7 | 11 21 7 700 235 | SHIM - 46X69X1 | - |
