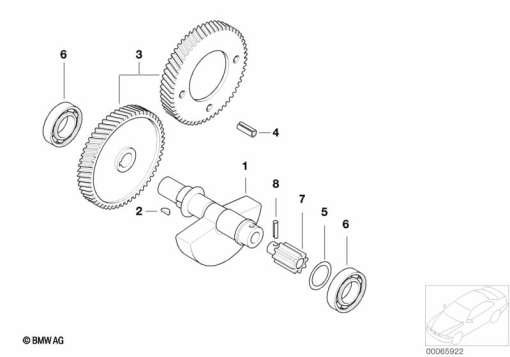

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 27 7 700 188 | COMPENSATING SHAFT | - | |
| 2 | 11 27 7 700 170 | WOODRUFF KEY - 4X5 | - | |
| 3 | 11 27 7 700 249 | GEAR SET | - | |
| 4 | 11 27 2 343 244 | CLAMPING BUSH - 8X24 | - | |
| 5 | 11 27 7 700 124 | SHIM - 20X41X1,0 | - | |
11 27 7 700 125 | SHIM - 20X41X0,8Alternative for position 5 | - | ||
11 27 7 700 327 | SHIM - 20X41X1,4Alternative for position 5 | - | ||
11 27 7 700 328 | SHIM - 20X41X1,2Alternative for position 5 | - | ||
| 6 | 11 11 7 700 307 | GROOVED BALL BEARING - 52X20X15 | - | |
| 7 | 11 51 7 700 216 | PINION - 15 | - | |
| 8 | 11 51 7 700 381 | ROLL PIN - 4X19,8 | - |
