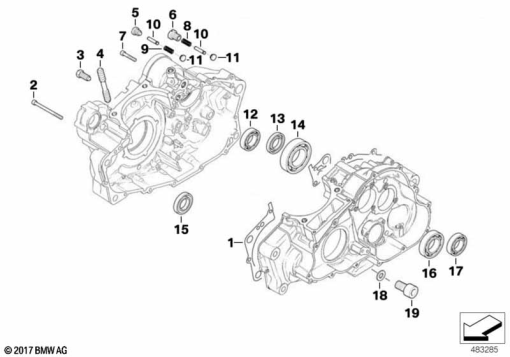

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 11 7 706 499 | GASKET | - | |
| 2 | 11 11 7 706 512 | TORX BOLT - M6X75 | - | |
| 3 | 11 11 7 700 300 | IDLE SWITCH | - | |
| 4 | 11 11 7 652 940 | STUD - M10X223 | - | |
| 5 | 11 11 2 343 006 | VALVE GUIDE | - | |
| 6 | 11 11 7 700 251 | SCREW PLUG - M12X1 | - | |
| 7 | 11 11 7 706 277 | TORX BOLT - M6X45 | - | |
| 8 | 11 11 2 343 007 | SPRING, PRESSURE MAINTENANCE VALVE | - | |
| 9 | 11 11 7 652 911 | COMPRESSION SPRING, NON-RETURN VALVE | - | |
| 10 | 11 11 2 343 008 | 2.20 | - | |
| 11 | 11 11 2 343 009 | CONSTANT PRESSURE VALVE | - | |
| 12 | 11 11 7 700 322 | GROOVED BALL BEARING - 17X47X14 | - | |
| 13 | 11 11 7 700 116 | SHAFT SEAL, OUTPUT SHAFT - 25X40X7 | - | |
| 14 | 11 11 7 700 261 | GROOVED BALL BEARING - 25X62X17 | - | |
| 15 | 11 11 7 700 117 | SHAFT SEAL, COMPENSATING SHAFT - 15X24X7 | - | |
| 16 | 11 11 7 700 115 | GROOVED BALL BEARING - 25X52X15 | - | |
| 17 | 11 11 7 700 114 | GROOVED BALL BEARING - 17X47X14 | - | |
| 18 | 11 11 2 343 010 | GASKET RING - A8X13 | - | |
| 19 | 11 11 7 706 513 | TORX BOLT - M8X20 | - |
