G650GS 10-15 (R131) | Engine

CYLINDER WITH PISTON

Diagram #11_2946 | 4 parts

100%

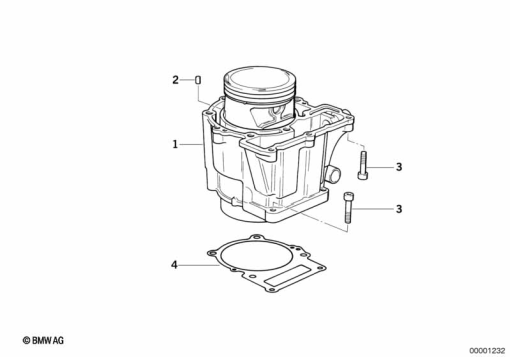

G650GS 10-15 (R131) CYLINDER WITH PISTON exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
11 11 7 700 201
SET: CYLINDER WITH PISTON, BLACK1
2
11 11 7 700 337
PIN - 5X101
3
11 11 7 706 514
HEXAGON BOLT WITH INSIDE TORX - M6X30-8.81
4
11 11 7 700 118
CYLINDER BASE GASKET1
