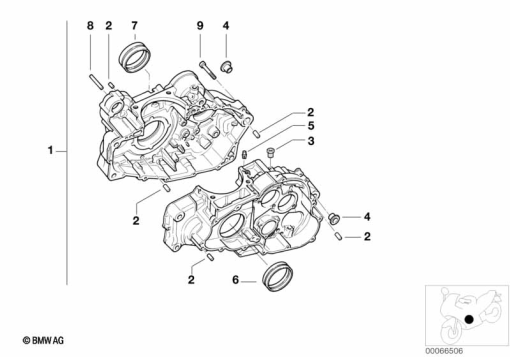

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 11 7 700 090 | ENGINE HOUSING, BLACK | - | |
| 2 | 11 11 7 700 106 | ROLL PIN - 8X12MM | - | |
| 3 | 11 11 7 652 971 | SCREW PLUG - M6X1 | - | |
| 4 | 11 11 7 699 378 | BUSH | - | |
11 11 7 700 113 | BUSHAlternative for position 4 | - | ||
| 5 | 11 11 7 700 337 | PIN - 5X10 | - | |
| 6 | 11 11 8 544 804 | SET: SET BEARING SHELLS | - | |
| 7 | 11 11 8 544 802 | SET: SET BEARING SHELLS | - | |
| 8 | 11 11 2 343 234 | DOWEL PIN - 10X50 | - | |
| 9 | 11 11 7 706 277 | TORX BOLT - M6X45 | - |
