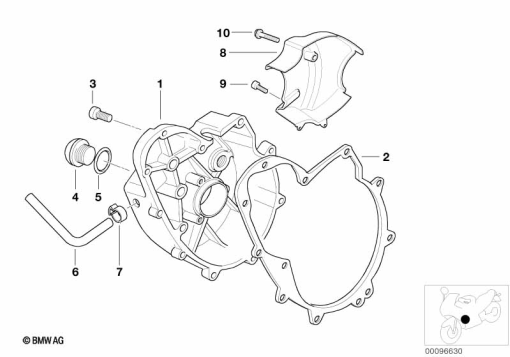

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 14 7 727 869 | ENGINE HOUSING COVER, ANTHRACITE, RIGHT | - | |
| 2 | 11 14 7 706 500 | GASKET RIGHT | - | |
| 3 | 11 14 7 699 393 | FILLISTER-HEAD SCREW - M6X30 | - | |
| 4 | 11 14 7 700 122 | SCREW PLUG - M24X1,5 | - | |
11 14 7 728 356 | SCREW PLUG, ANTHRACITE - M24X1,5Alternative for position 4 | - | ||
| 5 | 11 14 7 700 396 | O-RING - 23,3X2,4 | - | |
| 6 | 16 12 1 180 409 | FUEL HOSE - 8X13MM (meter) | - | |
| 7 | 13 71 7 655 875 | HOSE CLAMP - 12,5-14,5MM | - | |
| 8 | 11 14 7 728 041 | CHAIN GUARD, BLACK | - | |
| 9 | 07 12 9 903 807 | ISA SCREW - M6X25-8.8-ZNS3 | - |
