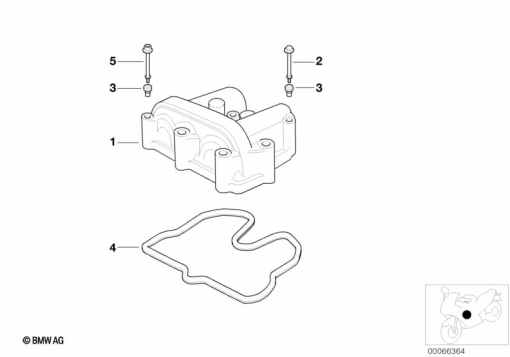

Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 12 7 700 330 | CYLINDER HEAD COVER BLACK | - | |
| 8 | 11 14 1 461 475 | RUBBER BUSH | - | |
| - | 11 12 7 652 921 | GASKET | - | |
| - | 11 12 2 343 326 | SCREW - 6X47,9-8.8-ZNS | - | |
| - | 11 14 1 461 475 | RUBBER BUSH | - | |
| - | 11 12 7 652 921 | GASKET | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
