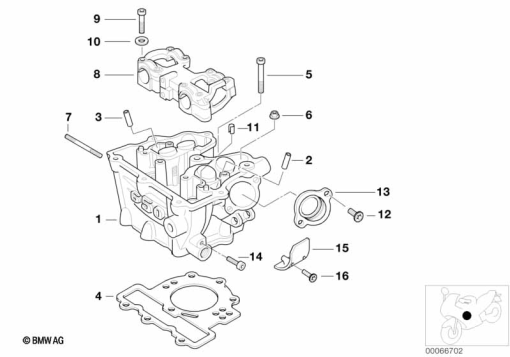

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 12 7 700 079 | CYLINDER HEAD | - | |
| 4 | 11 12 7 678 889 | CYLINDER HEAD GASKET | - | |
| 5 | 11 12 7 706 515 | COLLAR SCREW - M8X53,5 | - | |
| 6 | 11 12 7 687 231 | HEX NUT - M10-10 | - | |
| 7 | 11 12 7 706 516 | STUD BOLT - M8X23/20 | - | |
| 8 | 11 12 7 700 199 | SET: CAMSHAFT SUPPORTING BRACKET | - | |
| 9 | 11 11 7 706 277 | TORX BOLT - M6X45 | - | |
| 10 | 11 12 7 700 339 | WASHER - 6,2X12X1 | - | |
| 11 | 11 12 7 700 191 | DOWEL - 8,4X14 | - | |
| 12 | 11 11 7 706 513 | TORX BOLT - M8X20 | - | |
| 13 | 11 61 7 700 189 | INTAKE MANIFOLD | - | |
| 14 | 11 12 7 707 432 | VENT SCREW - M6X12 ZNS3 | - | |
| 15 | 11 14 7 679 954 | WIRING COVER, BLACK | - | |
11 14 7 728 042 | WIRING COVER, BLACKAlternative for position 15 | - | ||
| 16 | 07 12 9 906 779 | TORX BOLT - M5X30-U1-8.8 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
