G650GS 10-15 (R131) | Engine

TIMING GEAR - CAM SHAFT/CHAIN DRIVE

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #11_2938 | 16 parts

100%

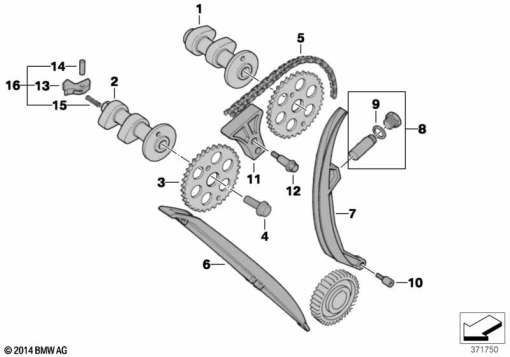

G650GS 10-15 (R131) TIMING GEAR - CAM SHAFT/CHAIN DRIVE exploded view parts diagram

Parts List (16)

#	Part Number	Description	Qty
1	11 31 7 700 286	INLET CAMSHAFT	-
2	11 31 7 700 288	CAMSHAFT EXHAUST	-
3	11 31 7 700 262	CAMSHAFT SPROCKET - 32 Z	-
4	11 31 7 654 011	TORX SCREW - M10X30	-
	11 11 7 700 258	TORX SCREW - M10X30Alternative for position 4	-
5	11 31 2 343 084	TIMING CHAIN	-
6	11 31 7 700 218	GUIDE RAIL	-
7	11 31 7 700 217	CHAIN TENSIONER	-
8	11 31 7 700 404	CHAIN TENSIONER/BOLT	-
9	11 31 7 700 128	GASKET RING - 18,2X24X1	-
10	11 31 7 676 592	BEARING SCREW - M6X31-MK	-
11	11 31 7 700 219	0.04	-
12	11 31 2 343 089	SPACER BOLT - M6X16	-
14	11 31 7 700 344	ROLL PIN - 5X23,8	-
15	11 31 7 700 129	COMPRESSION SPRING	-
16	11 31 7 715 302	SET: SET OF DECOMPRESSION LEVERS	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
