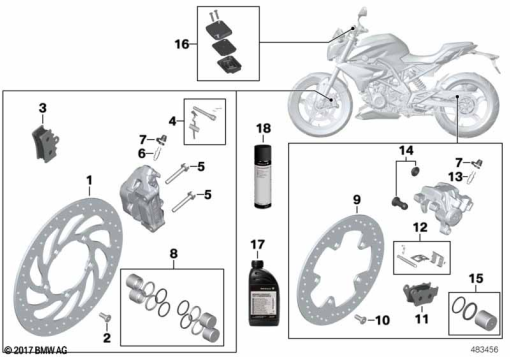

Parts List (25)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 11 8 554 133 | BRAKE ROTOR, FRONT | - | |
| 2 | 34 11 8 561 802 | COUNTERSUNK SCREW | - | |
| 3 | 34 11 8 354 919 | SET: SET OF BRAKE PADS FRONT | - | |
83 12 2 296 187 | Brake Pad Paste - 5 mlAlternative for position 3 | - | ||
| - | 34 11 8 569 407 | SET: SET OF MOUNTING PARTS, BRAKE PADS | - | |
| 4 | 34 11 8 569 407 | SET: SET OF MOUNTING PARTS, BRAKE PADS | - | |
| 5 | 34 11 8 561 806 | HEXAGON-HEAD BOLT WITH SHANK - M8X50-10.9 | - | |
| 6 | 34 11 8 569 408 | VENT SCREW | - | |
| 7 | 34 11 8 569 409 | 34 11 8 569 409 | 2 | |
| 8 | 34 11 8 569 410 | SET: SET OF BRAKE PISTONS WITH SEALS | - | |
| 9 | 34 21 8 554 136 | REAR BRAKE DISC | - | |
| 10 | 34 11 8 561 802 | COUNTERSUNK SCREW | - | |
| 11 | 34 21 2 345 449 | SET: BRAKE PADS KIT | - | |
83 12 2 296 187 | Brake Pad Paste - 5 mlAlternative for position 11 | - | ||
| 12 | 34 21 8 569 413 | SET: KIT, ATTACHMENT PARTS, BRAKE LINING | - | |
| 13 | 34 21 8 569 414 | VENT SCREW | - | |
| 14 | 34 21 8 569 416 | SET: REPAIR KIT, RUBBER COVER | - | |
| 15 | 34 21 8 569 415 | SET: SET OF BRAKE PISTONS WITH SEALS | - | |
| 16 | 32 72 8 569 419 | SET: SET OF CAPS, FLUID RESERVOIR, BRAKES | - | |
| 17 | 83 13 2 445 461 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 1L (to 01/23) | - | |
83105A87362 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 1LAlternative for position 17 | - | ||
83135A824F1 | BRAKE FLUID DOT4, LOW-VISCOSITY EU - 60LAlternative for position 17 | - | ||
83 13 2 405 975 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 250ML (to 04/23)Alternative for position 17 | - | ||
83135A824F2 | BRAKE FLUID DOT4, LOW-VISCOSITY EU - 250MLAlternative for position 17 | - | ||
| 18 | 83195A23100 | BRAKE CLEANER, ACETONE-FREE - 500ML | - |
