G310GS 16 (K02) | Service Items
ENGINE OIL / MAINTENANCE SERVICE

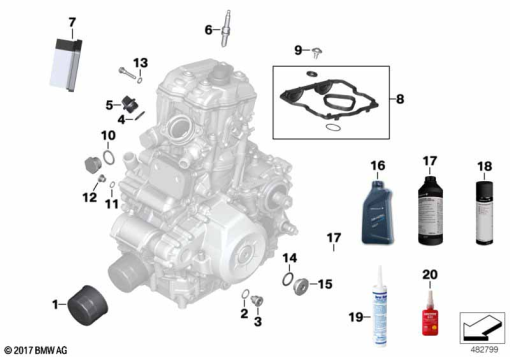

Diagram #02_0137 | 27 parts | 1 available in shop
100%
Parts List (27)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 42 8 562 889 | OIL FILTER | 1 | |
| 2 | 07 11 9 963 252 | GASKET RING - A16X20-AL | 1 | |
| 3 | 11 13 7 720 999 | SCREW PLUG, MAGNETIC - M16X1,5-ZNNIV (to 04/23) | 1 | |
| 3 | 07145A71AF9 | SCREW PLUG. MAGNET - M16X1,5 | 1 | |
| 4 | 11 43 8 562 876 | O-RING - 21,5X2 | 1 | |
| 5 | 11 43 8 562 877 | SCREW PLUG - M24X2 | 1 | |
| 6 | 12 12 7 719 772 | SPARK PLUG - NGK LMAR9D-J | 1 | |
| 7 | 13 71 8 556 564 | AIR FILTER ELEMENT | 1 | |
| 8 | 11 12 8 566 404 | SET: GASKET SET, CYLINDER HEAD COVER | 1 | |
| 9 | 11 12 8 562 743 | FLANGE SCREW - M6X15,5-8.8 | 1 | |
| 10 | 11 31 8 559 183 | GASKET RING - 24X30X2 | 1 | |
| 11 | 07 11 9 963 073 | GASKET RING - A10X13.5-AL | 1 | |
| 12 | 11 12 8 562 726 | SCREW PLUG, INNER HEXAGON - M10X1X9-ZNNIV | 1 | |
| 13 | 07 11 9 903 546 | GASKET RING - A8X13X1-AL | 1 | |
| 14 | 11 13 8 562 767 | O-RING - 22,7X3,1 | 1 | |
| 15 | 11 13 8 562 766 | SCREW PLUG - M26X1,5 | 1 | |
| 16 | 83 21 2 365 963 | MOTOR OIL ADVANTEC 15W-50 - 1L | 1 | |
| 16 | 83 21 2 365 958 | MOTOR OIL ADVANTEC 5W-40 - 1L | 1 | |
| 17 | 83 51 2 445 463 | RADIATOR/ANTIFREEZE/ANTI-CORROSION AGENT - 1,5L (to 09/13) | 1 | |
| 17 | 83515A87B45 | RADIATOR ANTIFREEZE - 1,5L (to 09/13) | 1 | |
| 17 | 83 51 2 355 290 | ANTI-FREEZE - 1,5L (to 03/22) | 1 | |
| 17 | 83515A6CDD7 | RADIATOR ANTIFREEZE - 1,5 LITER | 1 | |
| 17 | 83515A6CDD8 | RADIATOR ANTIFREEZE - 60 LITER | 1 | |
| 18 | 83195A23100 | BRAKE CLEANER, ACETONE-FREE - 500ML | 1 | |
| 18 | 83195A260A8 | BRAKE CLEANER, ACETONE-FREE - 500ML | 1 | |
| 19 | 83 19 0 404 517 | LOCTITE 5970 LIQUID SEALANT - 50ML | 1 | |
| 20 | 83 19 2 210 339 | THREAD LOCK, MEDIUM-STRENGTH - 10ML | 1 |
