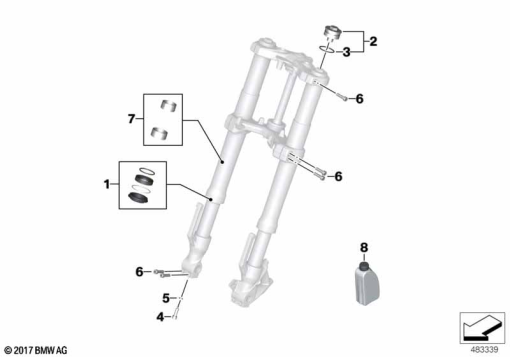

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 8 566 100 | SET: SET OF GASKETS (to 03/20) | - | |
31 42 9 829 220 | SET: SET OF GASKETSAlternative for position 1 | - | ||
| 2 | 31 42 8 566 091 | COVER | - | |
| 3 | 31 42 8 566 096 | O-RING - 42,2X2,4 | - | |
| 4 | 31 42 8 566 101 | SCREW - M10X1X25 | - | |
| - | 31 42 8 566 102 | GASKET RING - 15X10,5X1,5 | - | |
| 5 | 31 42 8 566 102 | GASKET RING - 15X10,5X1,5 | - | |
| 6 | 33 35 8 522 750 | FILLISTER-HEAD SCREW - M8X30-8.8 | - | |
| 7 | 31 42 8 388 686 | SET: SET OF PLAIN BEARINGS | - | |
| 8 | 83 19 2 449 422 | TELESCOPIC FORKS OIL TYPE 3 - 1000ML | - |
