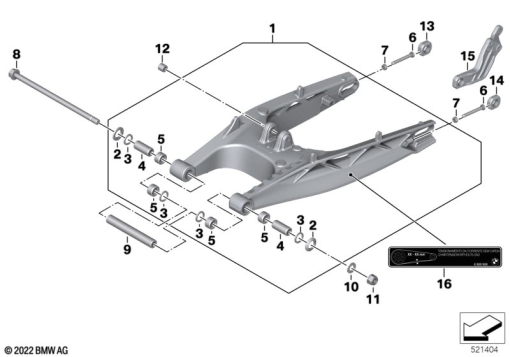

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 35 8 557 756 | REAR WHEEL SWINGING ARM | - | |
| 2 | 33 35 8 560 154 | STOP DISK | - | |
| 3 | 33 35 8 560 153 | GASKET RING | - | |
| 4 | 33 35 8 560 155 | BUSHING | - | |
| 5 | 33 53 7 650 093 | NEEDLE SLEEVE - 22X28X16 | - | |
| 6 | 33 35 8 522 748 | HEX BOLT - M8X65-8.8 | - | |
| 7 | 07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SI | - | |
| 8 | 33 35 8 554 127 | SWINGING FORK PIVOT | - | |
| 9 | 33 35 9 898 975 | SPACER TUBE | - | |
| 10 | 33 35 8 522 745 | WASHER - 14-200 HV | - | |
| 11 | 33 35 8 522 746 | NUT, SELF-LOCKING - M14 | - | |
| 12 | 33 35 8 554 109 | BUSH | - | |
| 13 | 33 35 8 554 130 | SLIDING PIECE RIGHT | - | |
| 14 | 33 35 8 554 129 | SLIDING PIECE LEFT | - | |
| 16 | 71 22 8 563 984 | NOTICE LABEL, CHAIN TENSION - 40-50MM | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
