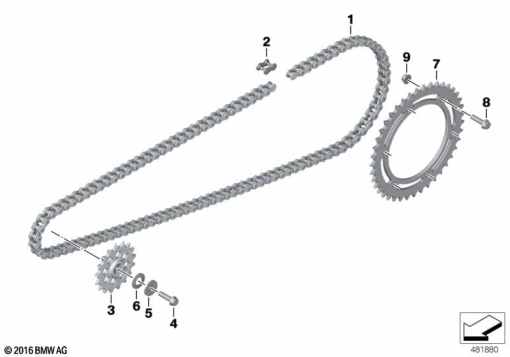

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 83 8 394 027 | CHAIN - 111 | - | |
33 83 8 394 028 | SET: SET CHAIN COUPLINGSAlternative for position 1 | - | ||
| 2 | 33 83 8 394 028 | SET: SET CHAIN COUPLINGS | - | |
| 3 | 33 82 8 560 446 | CHAIN PINION - 16 | - | |
| 4 | 23 20 8 564 415 | HEXAGON SCREW WITH FLANGE - M8X30-10.9-ZNNI | - | |
| 5 | 23 20 8 564 418 | STEP PLATE - 28X8X5,5 | - | |
| 6 | 23 20 8 564 417 | DIAPHRAGM SPRING - 28X14.2X1.5 | - | |
| 7 | 33 84 8 560 450 | SPROCKET - 40 | - | |
| 8 | 23 20 8 564 415 | HEXAGON SCREW WITH FLANGE - M8X30-10.9-ZNNI | - | |
| 9 | 33 85 8 560 459 | FLANGE NUT - M8X1.25 | - |
