G310GS 16 (K02) | Rear Axle & Suspension

SPRING STRUT

Diagram #33_2064 | 3 parts

100%

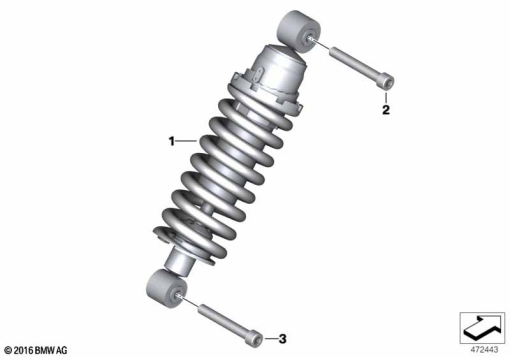

G310GS 16 (K02) SPRING STRUT exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
33 54 8 563 009
SPRING STRUT1
2
33 35 8 522 744
FILLISTER-HEAD SCREW - M10X70-10.91
3
33 35 8 522 744
FILLISTER-HEAD SCREW - M10X70-10.91
