G310GS 16 (K02) | Frame, Fairing, Cases

LOWER REAR SECTION

Diagram #46_1996 | 4 parts

100%

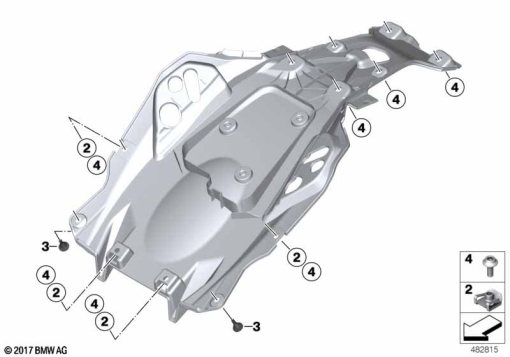

G310GS 16 (K02) LOWER REAR SECTION exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
46 63 8 561 435
TAIL COWLING BOTTOM1
2
46 63 8 532 314
C-CLIP NUT, SELF-LOCKING - M51
3
52 53 7 703 580
RUBBER SUPPORT1
4
46 63 8 558 349
BODY SCREW WITH SHOULDER - M5X141
