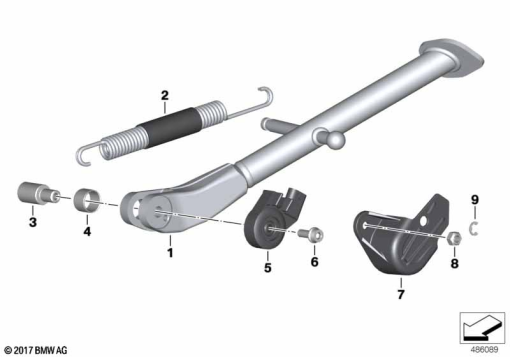

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 53 8 414 450 | SIDE STAND | - | |
| 2 | 46 53 8 560 061 | SPRING WITH GROMMET | - | |
| 3 | 46 53 8 414 453 | SIDE-SUPPORT SCREW | - | |
| 4 | 46 53 8 560 142 | PLAIN BEARING | - | |
| 5 | 61 31 8 388 642 | SWITCH, KICKSTAND | - | |
| 6 | 11 44 8 562 863 | HEXAGON SOCKET SCREW WITH FLANGE - M6X16-8.8-ZNNIV | - | |
| 7 | 61 31 8 355 156 | COVER FOR SIDE-STAND SWITCH (from 05/18) | - | |
46 53 9 457 238 | COVER FOR SIDE-STAND SWITCH (to 05/18)Alternative for position 7 | - | ||
| 8 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | - | |
| 9 | 07 11 9 909 941 | CIRCLIP | - | |
07 11 9 909 941 | CIRCLIPAlternative for position 9 | - |
