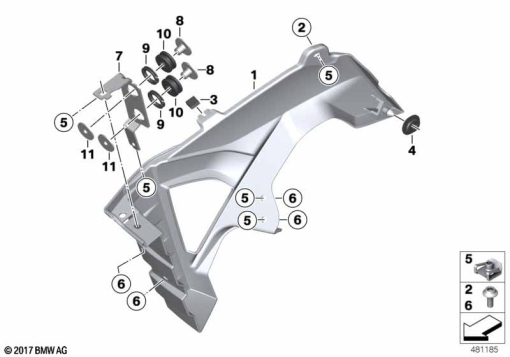

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 8 560 421 | GRILL COVER, LEFT (to 08/19) | - | |
46 63 1 540 037 | GRILL COVER, LEFTAlternative for position 1 | - | ||
46 63 8 560 422 | GRILL COVER, RIGHTAlternative for position 1 | - | ||
| 2 | 46 63 8 558 349 | BODY SCREW WITH SHOULDER - M5X14 | - | |
| 3 | 46 63 8 558 292 | SUPPORT BUFFER | - | |
| 4 | 46 63 8 380 725 | GROMMET | - | |
| 5 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
| 6 | 46 63 8 558 358 | BODY SCREW WITHOUT SHOULDER - M5X14 | - | |
| 7 | 46 63 8 563 667 | BRACKET LEFT | - | |
46 63 8 563 668 | BRACKET RIGHTAlternative for position 7 | - | ||
| 8 | 46 63 1 451 275 | BUSH - 25X6.4X10-ZNS3 | - | |
| 9 | 46 63 1 451 278 | INSERT | - | |
| 10 | 17 11 7 722 131 | GROMMET | - | |
| 11 | 07 14 6 977 329 | WASHER - 6,4X25X1,5 | - |
