G310GS 16 (K02) | Frame, Fairing, Cases
SIDE TRIM PANEL FRONT BLANK

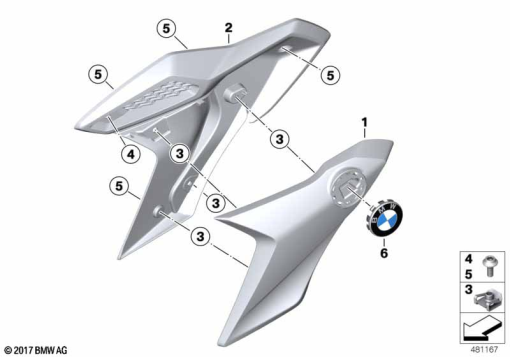

Diagram #46_1973 | 8 parts | 1 available in shop
100%
Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 8 388 669 | BADGE HOLDER BLANK LEFT - ROHTEIL / BLANK | 1 | |
| 1 | 46 63 8 388 670 | BADGE HOLDER BLANK RIGHT - ROHTEIL / BLANK | 1 | |
| 2 | 46 63 8 560 417 | INTAKE AIR SNORKEL COVER, LEFT - ROHTEIL / BLANK | 1 | |
| 2 | 46 63 8 560 418 | INTAKE AIR SNORKEL COVER, RIGHT - ROHTEIL / BLANK | 1 | |
| 3 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | 1 | |
| 4 | 46 63 8 558 358 | BODY SCREW WITHOUT SHOULDER - M5X14 | 1 | |
| 5 | 46 63 8 558 349 | BODY SCREW WITH SHOULDER - M5X14 | 1 | |
| 6 | 36 13 6 850 834 | WHEEL CENTER CAP WITH CHROME RING - BMW | 1 |
