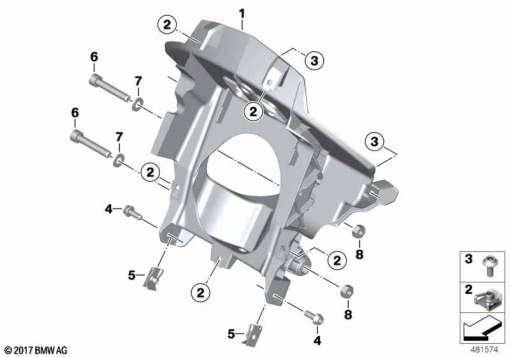

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 8 560 403 | FRONT PANEL CARRIER (to 08/20) | - | |
46 63 9 480 261 | FRONT PANEL CARRIER (from 08/20)Alternative for position 1 | - | ||
| 2 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
| 3 | 46 63 8 558 358 | BODY SCREW WITHOUT SHOULDER - M5X14 | - | |
| 4 | 11 44 8 562 863 | HEXAGON SOCKET SCREW WITH FLANGE - M6X16-8.8-ZNNIV | - | |
| 5 | 07 14 7 693 887 | C-CLIP NUT - M6 | - | |
| 6 | 46 63 8 564 077 | FILLISTER-HEAD SCREW - M8X45-8.8-ZNNIV | - | |
| 7 | 33 35 8 522 751 | WASHER - 8-200 HV-ZNNIV | - | |
| 8 | 07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SI | - |
