Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 32 8 562 037 | BRAKE HOSE CONTROL CIRCUIT FRONT | - | |
| 2 | 34 32 8 562 036 | BRAKE HOSE FOR FRONT BRAKE CIRCUIT | - | |
| 3 | 34 32 8 560 058 | HOLLOW BOLT - M10X1X19-SW | - | |
| 8 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - | |
| - | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - | |
| - | 34 32 8 560 060 | TWIST TRAVEL STOP | - | |
| - | 34 32 7 727 425 | BRACKET, BRAKE PIPE, DOUBLE | - | |
| - | 34 32 7 704 570 | WIRE HOLDER, TWO-PLACE | - | |
| 8 | 11 44 8 562 863 | HEXAGON SOCKET SCREW WITH FLANGE - M6X16-8.8-ZNNIV | - | |
| 9 | 34 32 8 559 126 | FASTENING CLAMP | - | |
| 10 | 11 11 8 557 331 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | - |

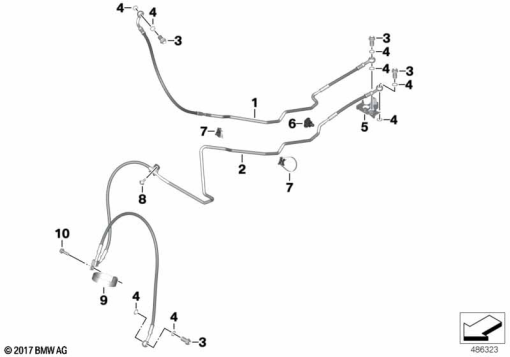

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
