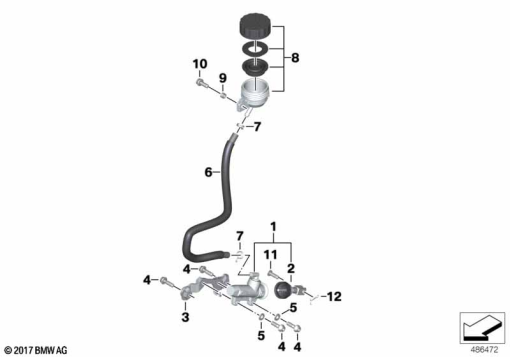

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 31 8 560 098 | REAR BRAKE MASTER CYLINDER | 1 | |
| 1 | 34 31 8 560 054 | SPLIT PIN | 1 | |
| 2 | 34 31 8 569 535 | SET: SET OF ANTI-ROLL BAR LEFT | 1 | |
| 1 | 34 31 8 560 054 | SPLIT PIN | 1 | |
| 3 | 34 31 8 560 596 | HOLDER | 1 | |
| 4 | 11 11 8 557 331 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | 1 | |
| 5 | 63 13 8 358 251 | WASHER - 12X6.4X1.6 | 1 | |
| 6 | 34 31 8 560 055 | HOSE - L=343MM | 1 | |
| 2 | 34 31 8 560 056 | HOSE CLAMP | 1 | |
| 7 | 34 31 8 560 056 | HOSE CLAMP | 1 | |
| 8 | 34 31 8 569 534 | SET: EXPANSION TANK KIT | 1 | |
| 9 | 34 31 8 560 099 | BUSH - 8.7X6.5X5.5 | 1 | |
| 10 | 11 44 8 562 863 | HEXAGON SOCKET SCREW WITH FLANGE - M6X16-8.8-ZNNIV | 1 | |
| 11 | 34 31 8 560 053 | 0.01 | 1 | |
| 1 | 34 31 8 560 054 | SPLIT PIN | 1 | |
| 12 | 34 31 8 560 054 | SPLIT PIN | 1 |
