Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 32 8 562 039 | BRAKE HOSE FOR CONTROL CIRCUIT, REAR | - | |
| 2 | 34 32 8 562 038 | BRAKE CIRCUIT HOSE, REAR | - | |
| 3 | 34 32 8 560 058 | HOLLOW BOLT - M10X1X19-SW | - | |
| 8 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - | |
| - | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - | |
| - | 34 32 8 560 060 | TWIST TRAVEL STOP | - | |
| - | 34 32 7 704 570 | WIRE HOLDER, TWO-PLACE | - | |
| - | 34 32 7 689 901 | HOLDER | - | |
| 8 | 61 13 8 358 757 | CABLE RETAINER | - | |
| 9 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - |

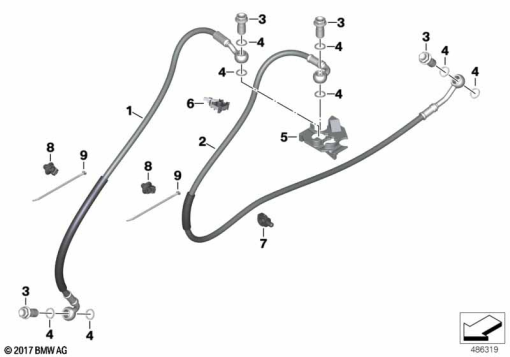

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
