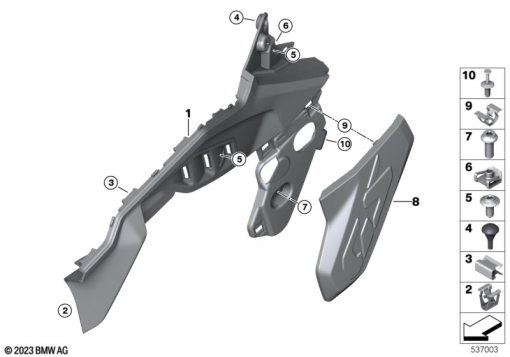

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 7 925 411 | TANK COVER LEFT BOTTOM | 1 | |
| 1 | 46 63 7 925 412 | TANK COVER RIGHT BOTTOM | 1 | |
| 2 | 46 63 8 406 049 | CLIP | 1 | |
| 3 | 46 63 8 521 396 | MOUNTING CLIP | 1 | |
| 4 | 52 53 7 703 580 | RUBBER SUPPORT | 1 | |
| 5 | 18 51 8 531 936 | BODY SCREW WITHOUT SHOULDER - M5X12-A2-70 | 1 | |
| 6 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | 1 | |
| 7 | 07 12 9 908 404 | FILLISTER-HEAD SCREW - M6X16-8.8 MK | 1 | |
| 8 | 46 63 1 702 991 | TRIM, FRAME, LEFT | 1 | |
| 8 | 46 63 1 702 992 | TRIM, FRAME, RIGHT | 1 | |
| 9 | 46 63 8 406 049 | CLIP | 1 | |
| 10 | 51 11 1 908 077 | EXPANDING RIVET - D = 6MM | 1 |
