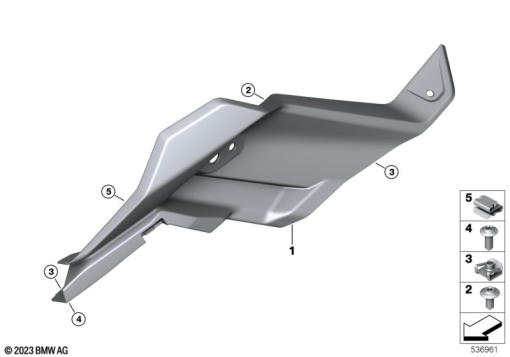

Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 1 702 985 | WIND DEFLECTOR, LEFT | - | |
46 63 1 702 986 | WIND DEFLECTOR, RIGHTAlternative for position 1 | - | ||
| 2 | 18 51 8 531 936 | BODY SCREW WITHOUT SHOULDER - M5X12-A2-70 | - | |
| 3 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
| 4 | 46 63 8 568 781 | BODY SCREW WITHOUT SHOULDER - M5X16-A2-70 | - | |
| 5 | 61 31 2 306 377 | FIXING CLAMP - A=2.0-2.5MM | - |
