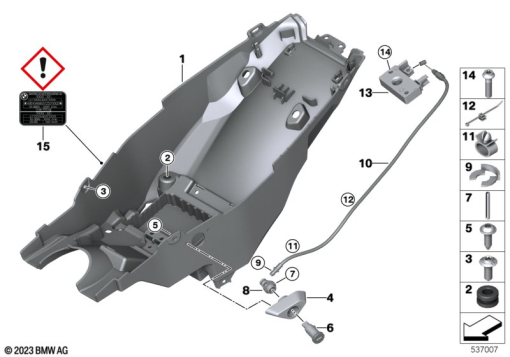

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 62 7 925 433 | REAR WHEEL COVER | - | |
| 2 | 46 63 8 534 532 | RUBBER GROMMET | - | |
| 3 | 61 31 8 547 664 | BODY SCREW WITHOUT SHOULDER - M6X16 A2 MK | - | |
| 4 | 51 25 1 702 982 | LOCK SUPPORT | - | |
| 5 | 51 16 7 072 159 | FILLISTER HEAD SCREW - ISA 4X14MM | - | |
| 6 | 51 25 8 393 958 | SET: REP.KIT F LOCK CYLINDER | - | |
| 7 | 07 11 9 941 417 | ROLL PIN - 2,5X18 | - | |
| 8 | 51255A657D6 | ECCENTRIC FOR REAR SEAT BENCH LOCK | - | |
| 9 | 07 12 9 909 733 | SECURING CLIP - ZNNIV SW | - | |
| 10 | 51255A76519 | BOWDEN CABLE FOR SEAT LOCK | - | |
| 11 | 64 11 1 364 073 | TUBING SUPPORT - D=10,8MM | - | |
| 12 | 61 13 6 918 644 | CABLE STRAP WITH BRACKET - L=200MM | - | |
| 13 | 51 25 8 409 955 | SEAT BENCH LOCK | - | |
| 14 | 07 12 9 909 321 | FILLISTER-HEAD SCREW - M6X25-8.8-MK | - | |
| 15 | 71215B3A1A6 | CHECK LEGAL INFORMATION LABEL | - |
