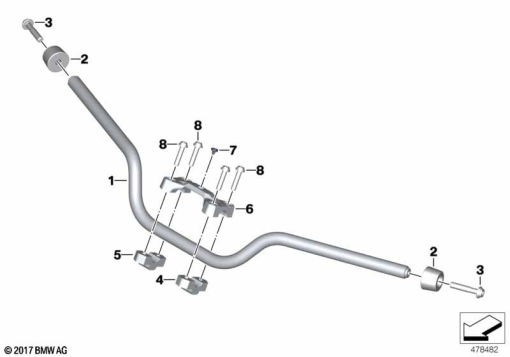

Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 71 8 388 531 | HANDLEBAR BOARD HIGH | - | |
| 2 | 32 71 8 526 494 | HANDLEBAR VIBRATION ABSORBER | - | |
| 3 | 07 12 9 907 390 | FILLISTER-HEAD SCREW - M10X50-8.8 | - | |
| 6 | 32 71 8 565 014 | CONTROL ARM BRIDGE | - | |
| 7 | 31 42 7 700 545 | BADGE | - | |
| 8 | 07 12 9 909 870 | FILLISTER-HEAD SCREW - M8X35 ZNNIV SI | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
