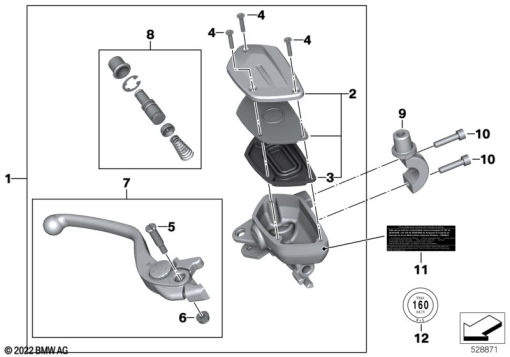

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 72 8 563 845 | HANDBRAKE LEVER | - | |
| 2 | 32 72 8 566 733 | SET: SET OF CAPS, FLUID RESERVOIR, BRAKES | - | |
| 3 | 32 72 8 558 856 | RUBBER BOOT | - | |
| 4 | 32 72 8 559 863 | COUNTERSUNK SCREW - M4X20 | - | |
| 5 | 32 72 8 559 816 | SCREW | - | |
| 6 | 32 72 8 554 974 | NUT - M6 | - | |
| 7 | 32 72 8 566 734 | SET: HANDBRAKE LEVER | - | |
| 8 | 32 72 8 562 179 | SET: PISTON - D=14 | - | |
| 9 | 32 72 8 393 011 | PIPE CLAMP | - | |
32 72 8 354 668 | PIPE CLAMP RIGHTAlternative for position 9 | - | ||
| 10 | 07 12 9 907 402 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | - | |
| 12 | 71 21 7 666 490 | STICKER V-MAX 160KM/H / 100MP/H | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
