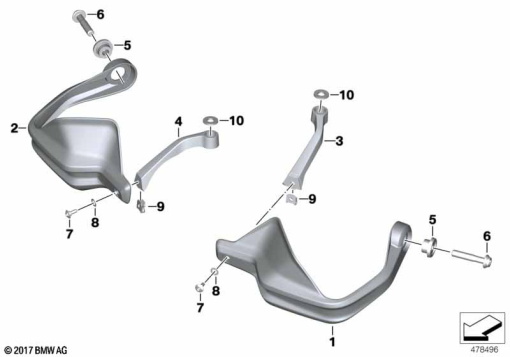

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 71 8 563 803 | HAND GUARD LEFT BLACK | - | |
32 71 9 829 355 | HAND GUARD, LEFT, YELLOWAlternative for position 1 | - | ||
| 2 | 32 71 8 563 804 | HAND PROTECTOR RIGHT | - | |
32 71 9 829 356 | HAND GUARD, RIGHT, YELLOWAlternative for position 2 | - | ||
| 3 | 32 71 8 393 821 | BRACKET, HAND PROTECTOR LEFT | - | |
| 4 | 32 71 8 393 822 | BRACKET, HAND PROTECTOR RIGHT | - | |
| 5 | 46 63 8 523 435 | BUSH | - | |
| 7 | 46 63 8 521 653 | BODY SCREW WITH SHOULDER - M5X14,5-A2-70 | - | |
| 8 | 46 63 8 521 659 | PLASTIC WASHER - M5X12,5X0,5 | - | |
| 9 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
| 10 | 46 63 8 526 273 | WASHER | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
