F850GS ADV 17 (K82) | Frame, Fairing, Cases
FOOTREST PLATE/FOOTREST FRONT RIGHT

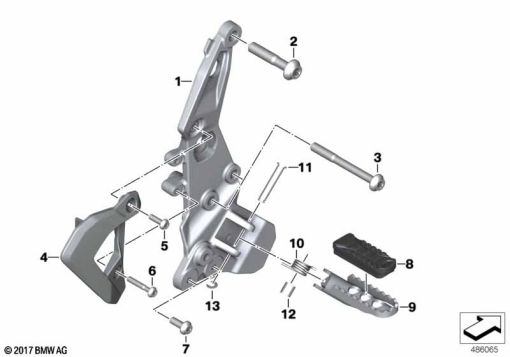

Diagram #46_2041 | 15 parts
100%
Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 8 393 176 | FOOTPEG PLATE RIGHT | 1 | |
| 1 | 46715A6F8B8 | FOOT PEG PLATE RIGHT | 1 | |
| 1 | 61315A67B31 | STOP LIGHT SWITCH COVER | 1 | |
| 1 | 07 12 9 909 394 | FILLISTER-HEAD SCREW - M5X10 8.8 MK | 1 | |
| 2 | 46 71 9 909 450 | FILLISTER-HEAD SCREW - M12X60 | 1 | |
| 3 | 07 12 9 908 724 | FILLISTER-HEAD SCREW - M10X95-10.9 | 1 | |
| 4 | 46 71 8 392 296 | HEEL GUARD, RIGHT | 1 | |
| 5 | 07 12 9 907 402 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | 1 | |
| 6 | 07 12 9 907 399 | FILLISTER-HEAD SCREW - M6X35-8.8-ZNNIV | 1 | |
| 7 | 07 12 9 907 383 | FILLISTER-HEAD SCREW - M8X20-8.8-ZNNIV | 1 | |
| 9 | 46 71 8 409 498 | FOOTPEG ENDURO RIGHT | 1 | |
| 1 | 46 71 8 526 107 | RETAINER SPRING | 1 | |
| 10 | 46 71 8 526 107 | RETAINER SPRING | 1 | |
| 11 | 46 71 7 675 208 | PIN - L=44MM | 1 | |
| 13 | 07 11 9 909 941 | CIRCLIP | 1 |
