F850GS ADV 17 (K82) | Frame, Fairing, Cases

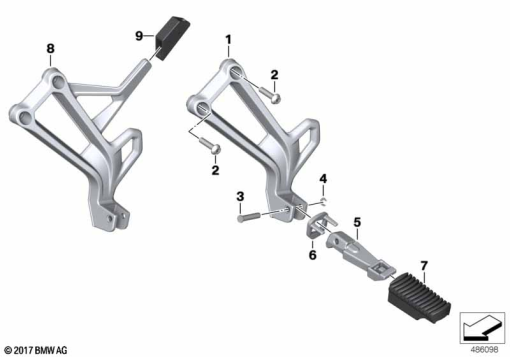

FOOTPEG PLATE/REAR FOOTPEG
Diagram #46_2042 | 10 parts | 1 available in shop
100%
Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 1 613 671 | RIGHT REAR FOOTREST HOLDER | 1 | |
| 1 | 46 71 8 564 827 | LEFT REAR FOOTREST HOLDER | 1 | |
| 2 | 07 12 9 908 487 | FILLISTER-HEAD SCREW - M8X30-10.9-MK | 1 | |
| 3 | 46 71 7 675 691 | PIN - D=8MM/ L=37,5MM | 1 | |
| 4 | 07 11 9 909 941 | CIRCLIP | 1 | |
| 5 | 46 71 7 705 653 | FOOTREST, REAR LEFT | 1 | |
| 5 | 46 71 7 705 654 | FOOTREST, REAR RIGHT | 1 | |
| 6 | 46 71 7 716 151 | THRUST WASHER, LEFT | 1 | |
| 6 | 46 71 7 716 152 | THRUST WASHER, RIGHT | 1 | |
| 7 | 46 71 7 664 225 | FOOTREST RUBBER | 1 |
