F850GS ADV 17 (K82) | Frame, Fairing, Cases
FOOTREST PLATE/FOOTREST FRONT LEFT

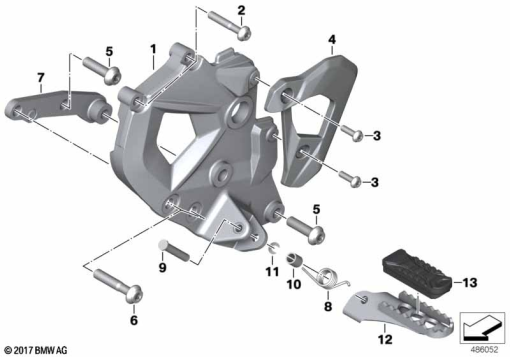

Diagram #46_2040 | 13 parts
100%
Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 8 393 175 | FOOTREST PLATE, LEFT | - | |
| 2 | 07 12 9 909 571 | FILLISTER-HEAD SCREW - M8X40-10.9 | - | |
| 3 | 07 12 9 907 402 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | - | |
| 4 | 46 71 8 392 295 | HEEL GUARD, LEFT | - | |
| 5 | 07 12 9 907 390 | FILLISTER-HEAD SCREW - M10X50-8.8 | - | |
07 12 9 907 428 | FILLISTER-HEAD SCREW - M10X35-8.8Alternative for position 5 | - | ||
| 6 | 07 12 9 907 390 | FILLISTER-HEAD SCREW - M10X50-8.8 | - | |
| 7 | 46 52 8 358 269 | SUPPORTING PLATE LEFT | - | |
| 8 | 46 71 8 526 107 | RETAINER SPRING | - | |
| 9 | 46 71 7 675 208 | PIN - L=44MM | - | |
| 11 | 07 11 9 909 941 | CIRCLIP | - | |
| 12 | 46 71 8 409 497 | FOOTPEG ENDURO LEFT | - | |
| - | 46 71 8 526 107 | RETAINER SPRING | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
