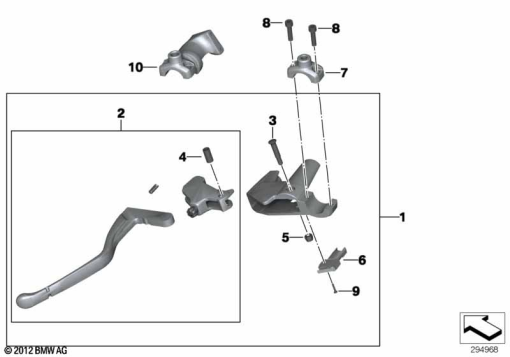

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 72 8 523 463 | CLUTCH LEVER ASSEMBLY, ADJUSTABLE | - | |
| - | 32 73 8 535 164 | CLUTCH CABLE | - | |
| - | 32 72 9 457 586 | PIPE CLAMP - M6 | - | |
| - | 07 12 9 903 807 | ISA SCREW - M6X25-8.8-ZNS3 | - | |
| 2 | 32 72 7 705 606 | SET: CLUTCH LEVER | - | |
| 3 | 32 72 7 673 989 | COUNTERSUNK HEAD SCREW - M5X30 | - | |
| 4 | 32 72 7 673 990 | SLEEVE | - | |
| 5 | 52 53 7 655 579 | SELF-LOCKING HEX NUT - M5-A2 | - | |
| 6 | 61 31 7 671 111 | MICROSWITCH | - | |
| - | 07 11 9 906 959 | COUNTERSUNK SCREW - M2X10-8.8-MK | - | |
| 7 | 32 72 8 533 246 | CLAMP WITH MIRROR MOUNT - M6 (to 03/15) | - | |
32 72 9 457 585 | CLAMP WITH MIRROR MOUNT - M6Alternative for position 7 | - | ||
32 72 7 673 917 | CLAMP WITH MIRROR MOUNT - M5Alternative for position 7 | - | ||
32 72 9 457 586 | PIPE CLAMP - M6Alternative for position 7 | - | ||
| 8 | 07 12 9 904 792 | ISA SCREW - M5X20 | - | |
07 12 9 903 807 | ISA SCREW - M6X25-8.8-ZNS3Alternative for position 8 | - | ||
| - | 32 72 8 523 463 | CLUTCH LEVER ASSEMBLY, ADJUSTABLE | - | |
| 9 | 07 11 9 906 959 | COUNTERSUNK SCREW - M2X10-8.8-MK | - | |
| 10 | 32 72 7 723 083 | PIPE CLAMP | - |
