Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 73 7 679 352 | THROTTLE CABLE (to 02/10) | - | |
32 73 7 726 554 | THROTTLE CABLE (from 02/10)Alternative for position 1 | - | ||
32 73 7 726 554 | THROTTLE CABLE (to 02/10)Alternative for position 1 | - | ||
| - | 13 54 7 728 355 | THROTTLE HOUSING ASSY (to 02/10) | - | |
| 2 | 32 73 7 721 819 | CLUTCH CABLE | - | |
| - | 32 73 8 527 528 | SECURING CLIP | - | |
| - | 07 11 9 904 948 | HEX NUT - M8-05-ZNNIV SI | - | |
| 3 | 32 73 7 679 354 | GUIDE STRAP | - | |
| 5 | 32 73 7 687 119 | RUBBER TENSION STRAP - L=75MM | - | |
| 9 | 32 73 8 527 528 | SECURING CLIP | - |

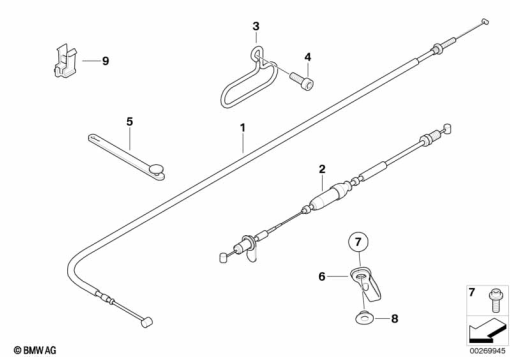

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
