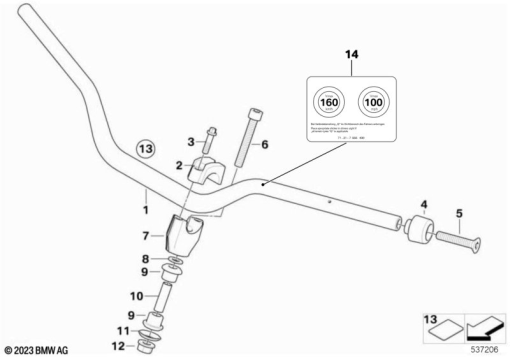

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 71 7 711 767 | HANDLEBAR, TUBULAR - B=791MM | - | |
| 2 | 32 71 7 704 802 | CLAMPING SUPPORT - D=28,5MM | - | |
| 3 | 07 12 9 906 204 | ASA-BOLT - M8X30-10.9 | - | |
| 4 | 32 71 7 712 796 | HANDLEBAR VIBRATION ABSORBER | - | |
71 60 7 714 660 | HANDLEBAR VIBRATION ABSORBERAlternative for position 4 | - | ||
| 5 | 32 71 7 717 803 | COUNTERSUNK HEAD SCREW - M12X65-MK-ZNS3 | - | |
| 6 | 31 42 7 684 359 | ISA SCREW - M10X70 | - | |
| 7 | 31 42 7 698 397 | CLAMPING SUPPORT, BOTTOM - D=28 | - | |
| 8 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | - | |
| 9 | 31 42 7 704 613 | RUBBER MOUNTING | - | |
| 10 | 32 71 7 704 472 | SLEEVE | - | |
| 11 | 32 71 7 704 471 | WASHER | - | |
| 12 | 33 30 6 760 587 | HEX NUT WIHT FLANGE - M10-10 ZNS3 | - | |
| 13 | 32 71 7 715 805 | PROTECTION FOIL - 67X51X0,2 | - |
