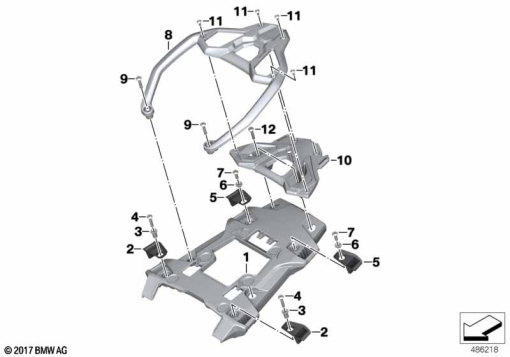

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 62 8 564 641 | REAR CARRIER PART | 1 | |
| 2 | 46 54 8 566 331 | BUFFER, FRONT LEFT | 1 | |
| 2 | 46 54 8 566 332 | BUFFER, FRONT RIGHT | 1 | |
| 3 | 46 62 8 543 435 | BUSHING, FRONT | 1 | |
| 4 | 07 12 9 908 466 | FILLISTER-HEAD SCREW - M8X40-8.8-MK | 1 | |
| 5 | 46 54 8 566 343 | BUFFER, REAR LEFT | 1 | |
| 5 | 46 54 8 566 344 | BUFFER, REAR RIGHT | 1 | |
| 6 | 46 62 8 543 436 | BUSHING, REAR | 1 | |
| 7 | 07 12 9 908 467 | FILLISTER-HEAD SCREW - M8X25-8.8-MK | 1 | |
| 8 | 46 72 8 564 644 | LUGGAGE RACK, UPPER SECTION | 1 | |
| 9 | 07 12 9 908 466 | FILLISTER-HEAD SCREW - M8X40-8.8-MK | 1 | |
| 10 | 46 72 8 565 070 | LUGGAGE RACK, LOWER SECTION | 1 | |
| 11 | 61 31 8 547 664 | BODY SCREW WITHOUT SHOULDER - M6X16 A2 MK | 1 | |
| 12 | 07 12 9 908 466 | FILLISTER-HEAD SCREW - M8X40-8.8-MK | 1 |
