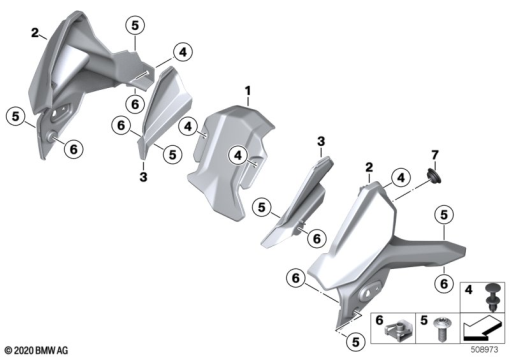

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 8 564 651 | SLIPSTREAM DEFLECTOR CENTER | - | |
| 2 | 46 63 1 541 722 | WIND DEFLECTOR, RIGHT - USB | - | |
46 63 8 564 653 | WIND DEFLECTOR, LEFTAlternative for position 2 | - | ||
| 3 | 46 63 8 564 637 | COVER FOR SLIPSTREAM DEFLECTOR LEFT | - | |
46 63 8 564 638 | COVER FOR SLIPSTREAM DEFLECTOR RIGHTAlternative for position 3 | - | ||
| 4 | 07 14 7 136 172 | EXPANDING RIVET | - | |
61 13 6 918 746 | CABLE STRAP WITH BRACKET - Ø=9 / L=200Alternative for position 4 | - | ||
| 5 | 46 63 8 568 781 | BODY SCREW WITHOUT SHOULDER - M5X16-A2-70 | - | |
| 6 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
| 7 | 46635A0C869 | PUSHROD SEAL - USB | - |
