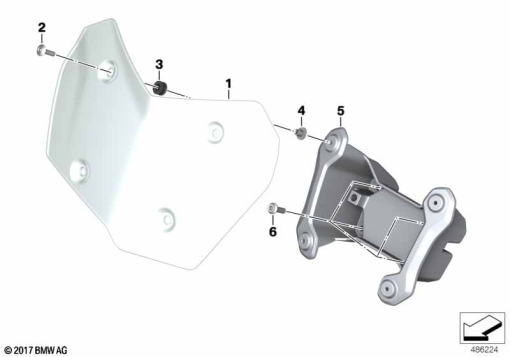

Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77 33 9 444 327 | WINDSHIELD, SHORT - L=216MM | - | |
46 63 8 569 664 | TOURING WINDSCREEN CLEAR - L=390MMAlternative for position 1 | - | ||
| 2 | 46 63 8 527 780 | BODY SCREW WITHOUT SHOULDER - M5X20-A2-70 | - | |
| 3 | 07 14 9 467 628 | RUBBER GROMMET | - | |
| 4 | 46 63 7 724 481 | FLANGE SLEEVE, STEEL - L=7MM | - | |
| 5 | 46 63 8 564 652 | WINDSCREEN HOLDER SHORT | - | |
| 6 | 07 12 9 907 402 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | - |
