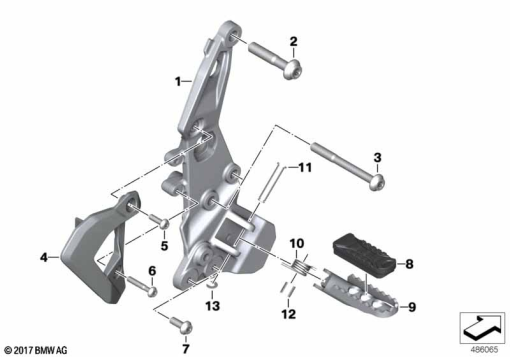

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 8 393 176 | FOOTPEG PLATE RIGHT | - | |
46715A6F8B8 | FOOT PEG PLATE RIGHTAlternative for position 1 | - | ||
61315A67B31 | STOP LIGHT SWITCH COVERAlternative for position 1 | - | ||
07 12 9 909 394 | FILLISTER-HEAD SCREW - M5X10 8.8 MKAlternative for position 1 | - | ||
| 2 | 46 71 9 909 450 | FILLISTER-HEAD SCREW - M12X60 | - | |
| 3 | 07 12 9 908 724 | FILLISTER-HEAD SCREW - M10X95-10.9 | - | |
| 4 | 46 71 8 392 296 | HEEL GUARD, RIGHT | - | |
| 5 | 07 12 9 907 402 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | - | |
| 6 | 07 12 9 907 399 | FILLISTER-HEAD SCREW - M6X35-8.8-ZNNIV | - | |
| 7 | 07 12 9 907 383 | FILLISTER-HEAD SCREW - M8X20-8.8-ZNNIV | - | |
| 8 | 46 71 8 530 633 | FOOTREST RUBBER | - | |
| 9 | 46 71 8 409 416 | FOOTREST, RIGHT | - | |
| 10 | 46 71 8 528 782 | RETAINER SPRING | - | |
| 13 | 07 11 9 901 545 | SECURING CLIP | - | |
07 11 9 909 941 | CIRCLIPAlternative for position 13 | - | ||
| - | 46 71 7 675 208 | PIN - L=44MM | - | |
| - | 46 71 8 528 781 | SPACER TUBE | - | |
| 13 | 07 11 9 909 941 | CIRCLIP | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
