F750GS (K80) | Frame, Fairing, Cases

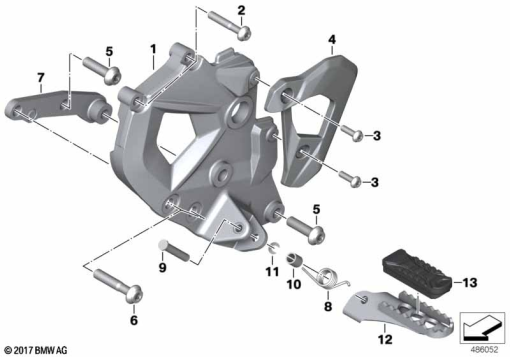

FOOTREST PLATE/FOOTREST FRONT LEFT
Diagram #46_2040 | 16 parts | 2 available in shop
100%
Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 8 393 175 | FOOTREST PLATE, LEFT | 1 | |
| 2 | 07 12 9 909 571 | FILLISTER-HEAD SCREW - M8X40-10.9 | 1 | |
| 3 | 07 12 9 907 402 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | 1 | |
| 4 | 46 71 8 392 295 | HEEL GUARD, LEFT | 1 | |
| 5 | 07 12 9 907 390 | FILLISTER-HEAD SCREW - M10X50-8.8 | 1 | |
| 5 | 07 12 9 907 428 | FILLISTER-HEAD SCREW - M10X35-8.8 | 1 | |
| 6 | 07 12 9 907 390 | FILLISTER-HEAD SCREW - M10X50-8.8 | 1 | |
| 7 | 46 52 8 358 269 | SUPPORTING PLATE LEFT | 1 | |
| 8 | 46 71 8 528 782 | RETAINER SPRING | 1 | |
| 9 | 46 71 7 675 208 | PIN - L=44MM | 1 | |
| 10 | 46 71 8 528 781 | SPACER TUBE | 1 | |
| 11 | 07 11 9 901 545 | SECURING CLIP | 1 | |
| 11 | 07 11 9 909 941 | CIRCLIP | 1 | |
| 11 | 07 11 9 909 941 | CIRCLIP | 1 | |
| 12 | 46 71 8 409 415 | FOOTREST, LEFT | 1 | |
| 13 | 46 71 8 530 633 | FOOTREST RUBBER | 1 |
