Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 1 613 671 | RIGHT REAR FOOTREST HOLDER | - | |
46 71 8 564 827 | LEFT REAR FOOTREST HOLDERAlternative for position 1 | - | ||
| 2 | 07 12 9 908 487 | FILLISTER-HEAD SCREW - M8X30-10.9-MK | - | |
| 4 | 07 11 9 901 545 | SECURING CLIP | - | |
| - | 46 71 7 675 691 | PIN - D=8MM/ L=37,5MM | - | |
| 4 | 07 11 9 909 941 | CIRCLIP | - | |
07 11 9 909 941 | CIRCLIPAlternative for position 4 | - | ||
| 5 | 46 71 7 705 653 | FOOTREST, REAR LEFT | - | |
46 71 7 705 654 | FOOTREST, REAR RIGHTAlternative for position 5 | - | ||
| 6 | 46 71 7 716 151 | THRUST WASHER, LEFT | - | |
46 71 7 716 152 | THRUST WASHER, RIGHTAlternative for position 6 | - | ||
| 7 | 46 71 7 664 225 | FOOTREST RUBBER | - | |
| 8 | 46 71 8 564 829 | LEFT REAR FOOTREST HOLDER | - | |
46 71 8 564 830 | RIGHT REAR FOOTREST HOLDERAlternative for position 8 | - | ||
| 9 | 46 71 8 556 271 | 0.03 | - |

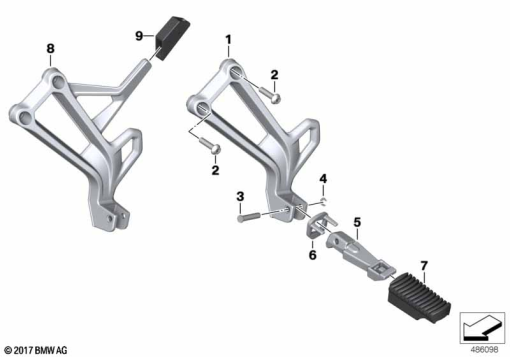

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
