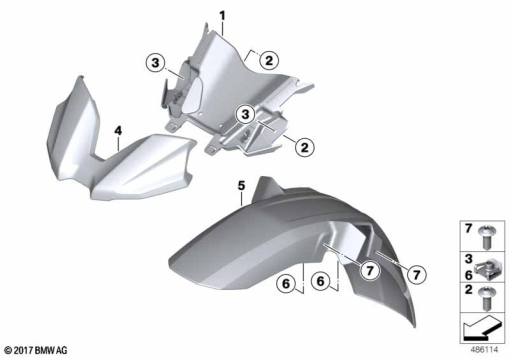

Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 61 8 564 539 | FRONT WHEEL FENDER, UPPER - ROHTEIL / BLANK | 1 | |
| 2 | 46 63 8 568 781 | BODY SCREW WITHOUT SHOULDER - M5X16-A2-70 | 1 | |
| 3 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | 1 | |
| 4 | 46 61 8 564 546 | FRONT WHEEL COVER EXTENSION | 1 | |
| 5 | 46 61 8 564 624 | FRONT WHEEL COVER, LOWER | 1 | |
| 6 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | 1 | |
| 7 | 18 51 8 531 936 | BODY SCREW WITHOUT SHOULDER - M5X12-A2-70 | 1 |
