F700GS (K70) | Frame, Fairing, Cases

WINDSHIELD

Diagram #46_1458 | 4 parts

100%

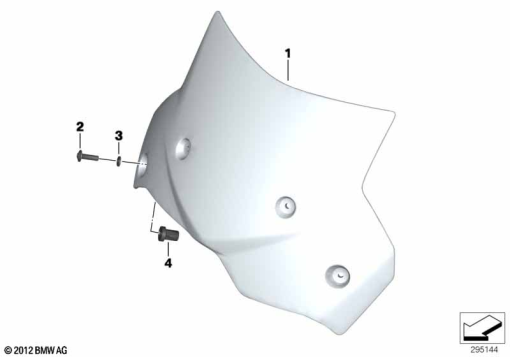

F700GS (K70) WINDSHIELD exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
46 63 8 526 521
WINDSHIELD - L=180MM1
2
46 63 7 653 066
BINDING HEAD SCREW - M5X18 A2-701
3
46 61 2 308 593
WASHER - 10X4,6X1,5-SW1
4
46 63 2 347 012
BLIND RIVET NUT, FLAT HEADED - M51
