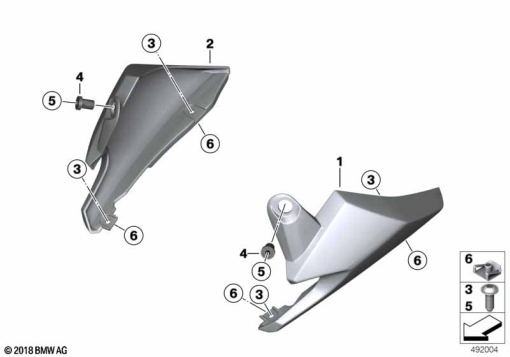

Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 8 526 519 | COCKPIT FAIRING, LEFT | 1 | |
| 2 | 46 63 8 526 520 | COCKPIT FAIRING, RIGHT | 1 | |
| 3 | 06 32 7 651 211 | FILLISTER HEAD SCREW - M5X12-A2-80 | 1 | |
| 4 | 46 63 2 347 012 | BLIND RIVET NUT, FLAT HEADED - M5 | 1 | |
| 5 | 46 63 7 653 066 | BINDING HEAD SCREW - M5X18 A2-70 | 1 | |
| 6 | 46 63 7 694 548 | C-CLIP NUT, SELF-LOCKING - M5 | 1 |
